Product title:SMD Reel Counter with detecting missing function SP-802

  • Product detail:Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total. Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component. Application 1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc 4. Suitable for all industries related to SMD components

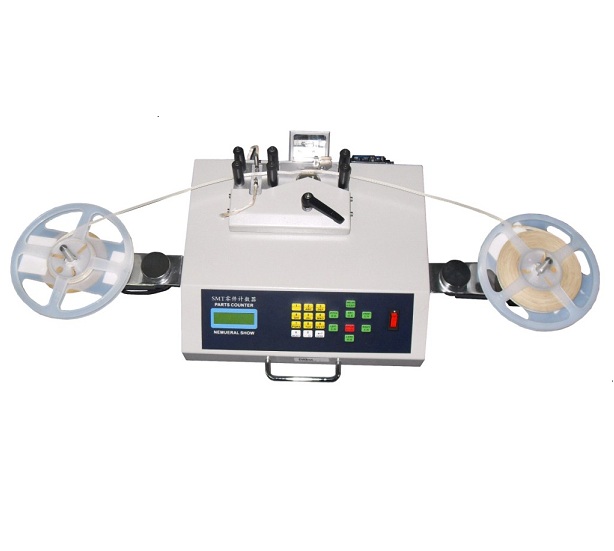

    SMD Reel Counter with detecting missing function  SP-802

    SP-802 can detect missing parts






    Machine can operate in two different ways:



     Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.

    Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.



     Application

    1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc

    2. Space between two components: 2,4,8,10,12,16,24,32,44,56(mm)

    3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm

    4. Suitable for all industries related to SMD components

    Parameters

    Voltage

     AC110V/220V, 50/60Hz(convertible)

    Capability

     5000 pcs /30s

     Power consumption

     30W(2 Motors)

     Counting volume

      -99999 ~ 99999pcs

     Size

     L470*W300*H180mm

     Net Weight

     10kg

     Reel Diameter

     Suitable for SMD Reel with any diameter

     Reel Interval Distance

     2,4,8,10,12,16,24,32,44,56mm

    Reel Width

     8,12,16,24,32,44,56mm



    Features

    1.Full automactic counter, high accuracy, no error.

    2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.

    3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.

    4.The counter use drafting LCD screen, easy operation, full English display.

    5.Use patent reflector,humanized operation platform.

    6.Optional bar scanner and code printer, convenient for component management.

    7.  Optical sensor can detect empty components. Motor will stop working when detected leak.

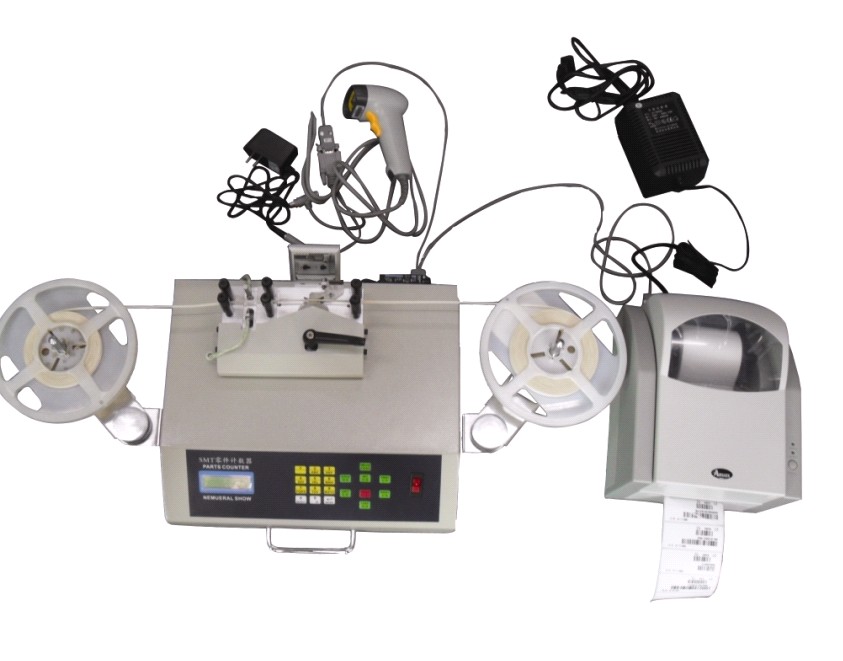

    Choosed part: Scaner and Printer
